PRODUCT

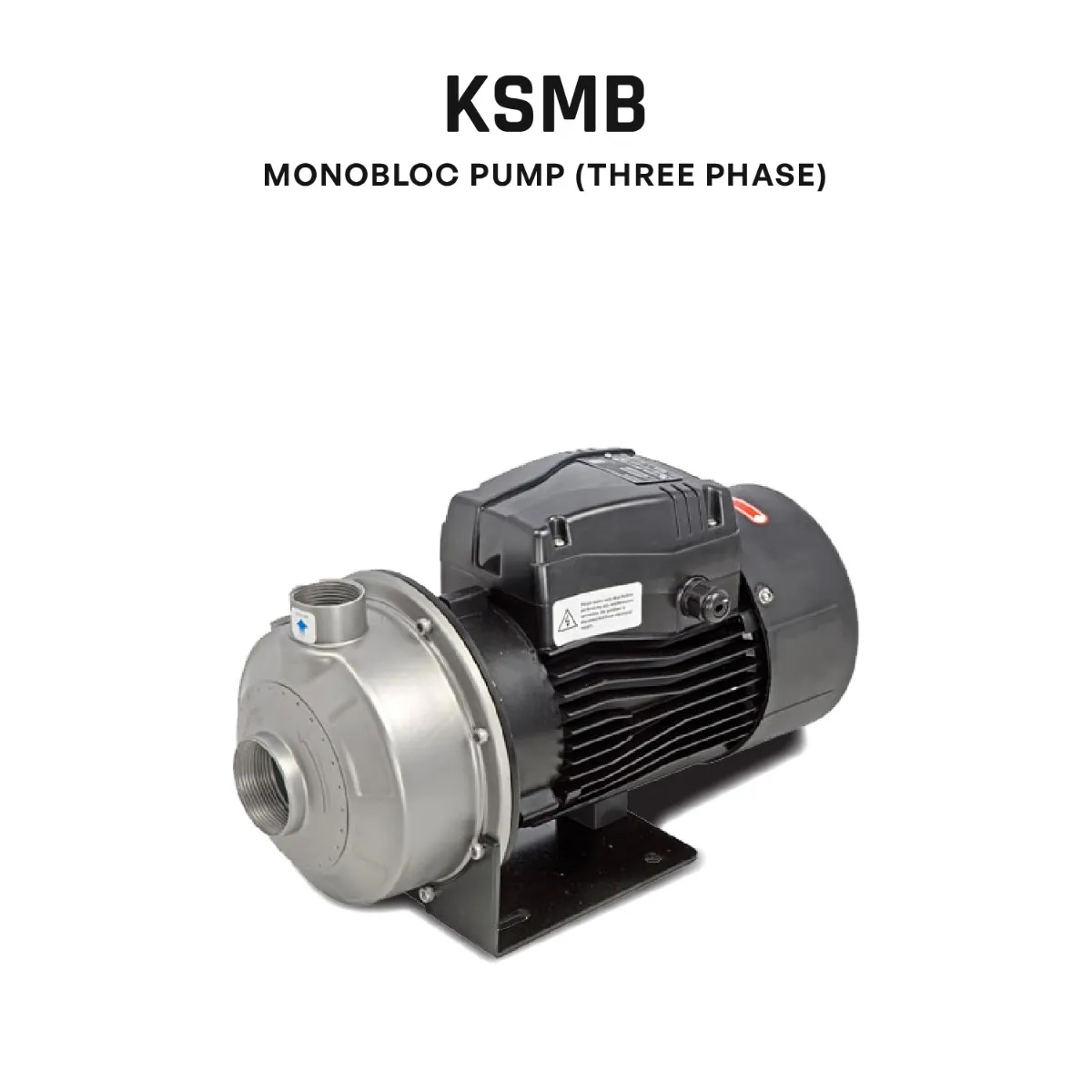

KSMB — Stainless-Steel Monobloc Pumpset
Stainless-steel wetted-component monobloc family for applications where corrosion resistance and cleanability are important — food processing, dairy, beverages, pharmaceutical and demineralising plants.
Stainless-steel wetted-component monobloc family for applications where corrosion resistance and cleanability are important — food processing, dairy, beverages, pharmaceutical and demineralising plants.
Applications
- Pharmaceutical industries
- Food processing
- Demineralising plants
- Air conditioning and refrigeration
- Dairy and beverages
Representative model
KSMB 220: 2 HP, 415 V, 50 × 32 mm, 2870 rpm; 14–22 m head, 72–372 LPM.
Key Features
- Stainless-steel wetted components
- Mechanical seal
- High-efficiency and energy-saving design
- Superior hydraulics
- Dynamically balanced rotating parts
- Compact construction
Technical specifications
| Parameter | Value |
|---|---|
| Max. head | Up to 50 m |
| Max. capacity | Up to 17.8 LPS |
| Power | 1–10 HP |
| Voltage | 350–440 V, three phase |
| Protection | IP44 / IP55 |
| Liquid pH | 5–9 |
| Product type | Surface-installed monobloc pumpset |
| Manufacturer | Kirloskar Brothers Limited (KBL) |
Material of construction
| Parameter | Value |
|---|---|
| Impeller | Stainless steel |
| Delivery casing | Stainless steel |
| Motor body | Cast iron |
| Pump shaft | Stainless steel |
| Mechanical seal | Carbon/ceramic up to 3 HP; carbon/silicon carbide for 5 HP and above |
| Rubber parts | NBR |
